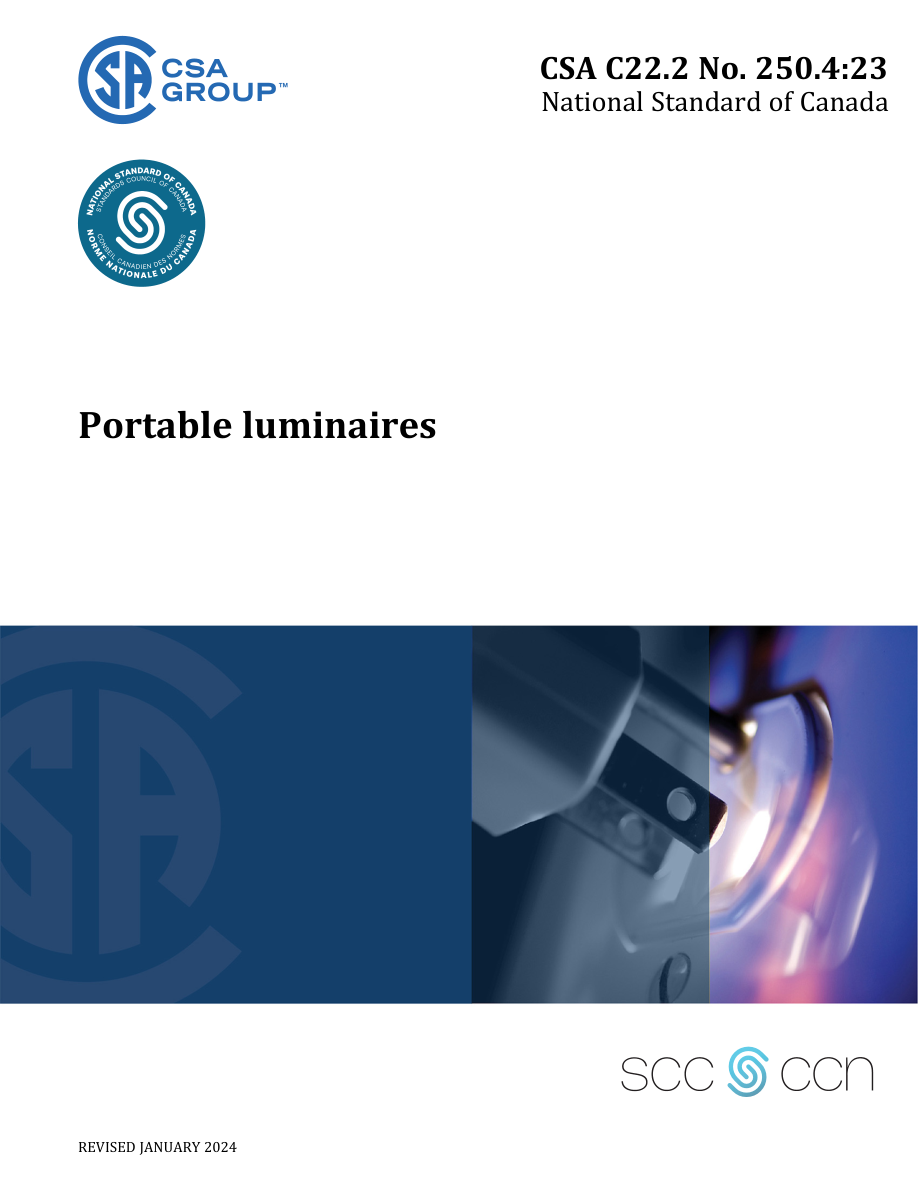

This is the third edition of CSA C22.2 No. 250.4, Portable luminaires , one of a series of Standards issued by CSA Group under Part II of the Canadian Electrical Code. It supersedes the previous editions published in 2020 and 2014. This Standard contains specific requirements for portable luminaires and is intended to be used together with the requirements for luminaires contained in CSA C22.2 No. 250.0. The major changes to this edition include
(Clauses 1.2, 1.3, 13.6, 13.7, and 13.8.1); c) updates in accordance with CSA C22.2 No. 250.0:21 (Clauses 5.10.12, 5.10.14, 6.10, 6.11.2, 6.16, 6.20, 8.6.5, 10.7, 13.5.8, 15.108, 17.111, 17.112, 18.103, 18.105, and 20.2.2, Table 18.105.1, and Annex K; d) additional requirements for LED luminaires (Clauses 10.101, 10.102, and 10.103); e) revision to the requirements for clamp-on luminaires (Clauses 13.3.4 and 17.110); f) addition of a note for waiving the maximum tipping moment test for a direct plug-in device (Clause 11.103); and g) revision to the load test requirements for handlamps and external ring hangers (Clauses 5.11.103 and 13.4.4.1). For general information on the Standards of the Canadian Electrical Code, Part II, see the Preface of CSA C22.2 No. 0, General requirements — Canadian Electrical Code, Part II. This Standard is considered suitable for use for conformity assessment within the stated scope of the Standard. This Standard was prepared by the Integrated Committee on Lighting Products, under the jurisdiction of the Technical Committee on Consumer and Commercial Products and the Strategic Steering Committee on Requirements for Electrical Safety, and has been formally approved by the Technical Committee. This Standard has been developed in compliance with Standards Council of Canada requirements for National Standards of Canada. It has been published as a National Standard of Canada by CSA Group.
This Standard applies to portable luminaires, intended for use in dry, damp, and wet locations, and intended to be used in accordance with the Rules of CSA C22.1, Canadian Electrical Code, Part I, in non- hazardous locations, on a nominal 120 V system and 15 or 20 A branch circuits, or on the load side of a Class 2, LED Class 2, or safety extra-low voltage (SELV) circuit.
This Standard applies to portable, incandescent, fluorescent, HID, LED, and other lighting technology luminaires for illuminative or decorative purposes and combinations of these, such as
This Standard does not apply to luminaires covered by other applicable standards, such as
For the purpose of this Standard, the term "luminaire" means portable luminaire.
In this Standard, "shall" is used to express a requirement, i.e., a provision that the user is obliged to satisfy in order to comply with the standard; "should" is used to express a recommendation or that which is advised but not required; and "may" is used to express an option or that which is permissible within the limits of the standard. Notes accompanying clauses do not include requirements or alternative requirements; the purpose of a note accompanying a clause is to separate from the text explanatory or informative material. Notes to tables and figures are considered part of the table or figure and may be written as requirements. Annexes are designated normative (mandatory) or informative (non-mandatory) to define their application.
The values given in SI units are the units of record for the purposes of this Standard. The values given in parentheses are for information and comparison only.
| SDO | CSA: Canadian Standards Association |
| Document Number | |
| Publication Date | Jan. 1, 2023 |
| Language | en - English |
| Page Count | 112 |
| Revision Level | |
| Supercedes | |
| Committee |
